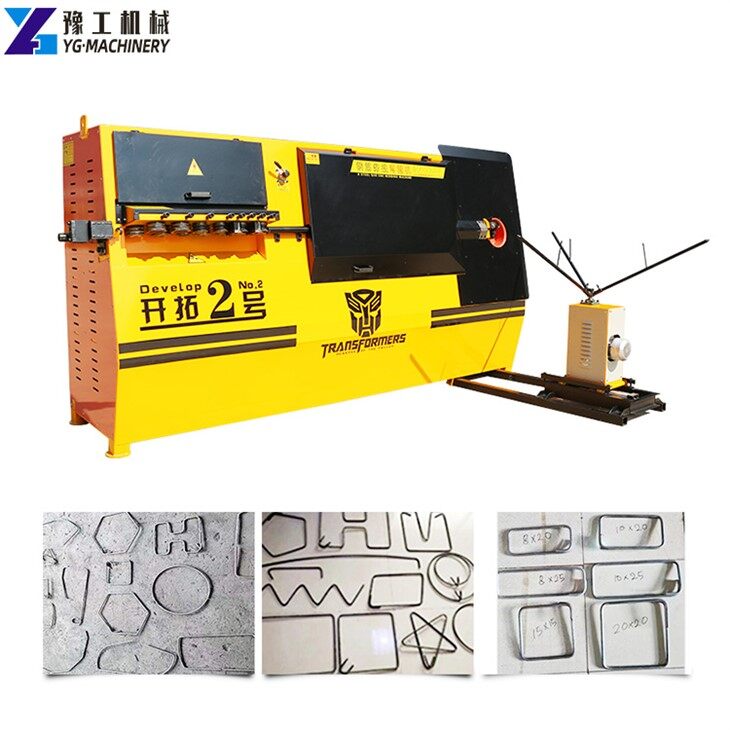

The CNC stirrup bending machine realizes the feeding of steel bars and deoxidation through fully intelligent and highly integrated control. It can directly produce stirrups of various sizes and specifications. The fully automatic steel bar stirrup bending machine production equipment adopts intelligent control and can process stirrups of various sizes. Various specifications of square, rectangular, corrugated, polygonal, etc., with straightening function at the same time, one machine with multiple uses, fully meeting the architectural requirements.
CNC Stirrup Bending Machine Parameter
|
Model |
YG-1 |
YG-2 |
YG-3 |
YG-4 |
|
Single wire(mm) |
Round steel 4-10mm Deformed steel bar 4-8mm |
Round steel 4-12mm Deformed steel bar 4-10mm |
Round steel 5-14mm Deformed steel bar 5-12mm |
Round steel 4-12mm Deformed steel bar 4-10mm |
|
Double wire(mm) |
Round steel 4-6mm Deformed steel bar 4-6mm |
Round steel 4-8mm Deformed steel bar4-8mm |
Round steel 5-10mm Deformed steel bar 5-10mm |
Round steel 4-8mm Deformed steel bar 4-8mm |
|
Max bending angle |
±180° |
±180° |
±180° |
±180° |
|
Center pin diameter |
16,18,20 |
16,18,20 |
/ |
16,18,20 |
|
Maximum towing speed |
60m/min |
60m/min |
110m/min |
110m/min |
|
Maximum bending speed |
800°/sec |
800°/sec |
1000°/sec |
800°/sec |
|
Machine size |
2600*800*1700mm |
3280*1000*1700mm |
3850*1200*2200mm |
3660*1110*1700mm |
|
Device color |
Yellow(customized) |
Yellow(customized) |
Yellow(customized) |
Yellow(customized) |
|
Pieces Processed |
≤2 |
≤2 |
≤2 |
≤2 |
|
Air circuit system pressure |
≥0.8mpa |
≥0.8mpa |
/ |
≥0.8mpa |
|
Total Power |
14kw |
20kw |
32kw |
23.5kw |
|
Working temperature |
-5°C~40° |
-5°C~40° |
-5°C~40° |
-5°C~40° |
|
Length accuracy |
±1mm |
±1mm |
±1mm |
±1mm |
|
Angle accuracy |
±1° |
±1° |
±1° |
±1° |
|
Average power |
4.5KW/h |
5KW/h |
5KW/h |
5KW/h |
|
Total weight |
1150KG |
1350KG |
2200KG |
1550KG |
|
Model |
YG-5-14S |
YG-5-16S |
|
Single wire(mm) |
Round steel 5-14mm Deformed steel bar 5-12mm |
Round steel 5-18mm Deformed steel bar 5-16mm |
|
Double wire(mm) |
Round steel 5-10mm Deformed steel bar5-10mm |
Round steel 5-14mm Deformed steel bar 5-12mm |
|
Max bending angle |
±180° |
±180° |
|
Maximum towing speed |
110m/min |
110m/min |
|
Maximum bending speed |
1000°/sec |
1000°/sec |
|
Machine size |
3850*1200*2200mm |
4400*1500*2100mm |
|
Device color |
Yellow(customized) |
Yellow(customized) |
|
Pieces Processed |
≤2 |
≤2 |
|
Air circuit system pressure |
≥0.8mpa |
≥0.8mpa |
|
Total Power |
32kw |
52.5kw |
|
Working temperature |
-5°C~40° |
-5°C~40° |
|
Length accuracy |
±1mm |
±1mm |
|
Angle accuracy |
±1° |
±1° |
|
Average power |
5KW/h |
12KW/h |
|
Total weight |
2200KG |
3000KG |
Features of CNC Stirrup Bending Machine
- Fully automatic stirrup production equipment, it also has a straightening function and can be used for two purposes.
- Using intelligent control, it can process squares, rectangles, diamonds, and polygons of various sizes and specifications.
- From wire rod raw materials to stirrup products formed in one go, it can process cold and hot-rolled high-strength wire rod steel bars.
- The production efficiency is high, equivalent to twenty to thirty laborers.
- The equipment is highly usable and requires only one person to operate, saving a lot of labor.
- Saving raw materials, the molding process is continuous and there is almost no loss of steel bar head.
- It occupies a small area, saves the straightening work area and cutting work area, and can operate in narrow areas.
- Equipment maintenance costs and energy consumption costs are very low.
Detailed Description of CNC Stirrup Bending Machine
- It consists of two sets of horizontal and vertical automatically adjustable straightening wheels, combined with 4 traction wheels, driven by imported servo motors to ensure the accuracy of steel bar straightening.
- Bending and shearing mechanism: driven by imported servo motors, the bending arm can rotate, and the shearing mechanism completes the shearing action at high speed to ensure the bending accuracy of the steel bar.
- Control system: This machine adopts a mature foreign control system with high reliability.
- It can be designed in any shape within up to 60 corners. It can store thousands of different shapes and has a graphics library to facilitate mass production of multiple varieties.
- It can continuously produce products of any shape without requiring mechanical adjustments; there is no need to interrupt processing when correcting the bending angle.
- The CNC hoop bending machine adopts advanced computer numerical control to automatically and quickly complete steel bar straightening, fixed-length hoop bending, and cutting. This machine is extremely efficient and can replace 20-30 steel bar workers, making it unique in the field of steel bar processing.
