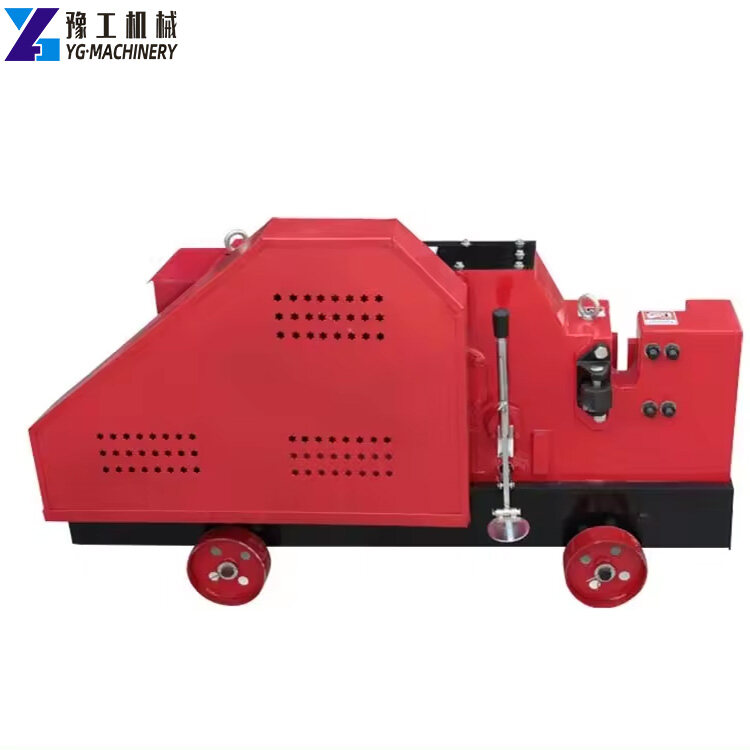

The electric bar cutter machine is mainly used for lengthening and cutting steel bars in civil engineering projects. It is an indispensable equipment in the steel bar processing and production process. It is mainly used for cutting steel raw materials in housing construction, bridges, tunnels, power stations, water conservancy, and other projects. It suits ordinary carbon steel, hot-rolled steel, and rebar in mechanical processing and construction projects. It can also cut flat steel, square steel, and angle steel.
Technical Parameter of Steel Bar Cutting Machine
|
Model |
Technical Parameter |
|
|
YG-40/YG-40S |
Motor Power(kW) |
2.2 |
|
Rebar Diameter(mm) |
6-25 |
|
|
Round Bar Diameter(mm) |
6-26 |
|
|
Cutting Number(times/min) |
32 |
|
|
Weight(kg) |
300 |
|
|
Dimension(mm) |
1200*310*630 |
|
|
YG-40A |
Motor Power(kW) |
3 |
|
Rebar Diameter(mm) |
6-28 |
|
|
Round Bar Diameter(mm) |
6-35 |
|
|
Cutting Number(times/min) |
32 |
|
|
Weight(kg) |
330 |
|
|
Dimension(mm) |
1310*460*760 |
|
|
YG-40B |
Motor Power(kW) |
3 |
|
Rebar Diameter(mm) |
6-32 |
|
|
Round Bar Diameter(mm) |
6-35 |
|
|
Cutting Number(times/min) |
32 |
|
|
Weight(kg) |
350 |
|
|
Dimension(mm) |
1310*460*760 |
|
|
YG-42 |
Motor Power(kW) |
3 |
|
Rebar Diameter(mm) |
6-32 |
|
|
Round Bar Diameter(mm) |
6-40 |
|
|
Cutting Number(times/min) |
32 |
|
|
Weight(kg) |
380 |
|
|
Dimension(mm) |
1330*460*790 |
|
|
YG-45 |
Motor Power(kW) |
4 |
|
Rebar Diameter(mm) |
6-32 |
|
|
Round Bar Diameter(mm) |
6-40 |
|
|
Cutting Number(times/min) |
32 |
|
|
Weight(kg) |
400 |
|
|
Dimension(mm) |
1330*460*790 |
|
|
YG-50 |
Motor Power(kW) |
4 |
|
Rebar Diameter(mm) |
6-40 |
|
|
Round Bar Diameter(mm) |
6-45 |
|
|
Cutting Number(times/min) |
28 |
|
|
Weight(kg) |
480 |
|
|
Dimension(mm) |
1410*460*810 |
|
|
YG-40 Straight Thread Rebar |
Motor Power(kW) |
3 |
|
Rebar Diameter(mm) |
6-28 |
|
|
Round Bar Diameter(mm) |
6-35 |
|
|
Cutting Number(times/min) |
32 |
|
|
Weight(kg) |
370 |
|
|
Dimension(mm) |
1330*460*790 |
|
|
YG-45 Straight Thread Rebar |
Motor Power(kW) |
4 |
|
Rebar Diameter(mm) |
6-32 |
|
|
Round Bar Diameter(mm) |
6-40 |
|
|
Cutting Number(times/min) |
32 |
|
|
Weight(kg) |
410 |
|
|
Dimension(mm) |
1330*460*790 |
|
|
YG-50 Straight Thread Rebar |
Motor Power(kW) |
4 |
|
Rebar Diameter(mm) |
6-40 |
|
|
Round Bar Diameter(mm) |
6-50 |
|
|
Cutting Number(times/min) |
28 |
|
|
Weight(kg) |
510 |
|
|
Dimension(mm) |
1410*460*810 |
|
|
YG-50 Angled Steel Bar |
Motor Power(kW) |
4 |
|
Angled Bar Diameter(mm) |
≤100*100*10 |
|
|
Cutting Number(times/min) |
28 |
|
|
Weight(kg) |
580 |
|
|
Dimension(mm) |
1440*460*810 |
|
|
YG-50 Flat Steel Bar |
Motor Power(kW) |
4 |
|
Flat Bar Diameter(mm) |
150*10 |
|
|
Cutting Number(times/min) |
28 |
|
|
Weight(kg) |
580 |
|
|
Dimension(mm) |
1440*460*810 |
|
Advantages of Steel Bar Cutting Machine
- Small size, lightweight, compact structure, solid, and reliable.
- Good lubrication performance: This machine adopts a closed structure and uses gear splash lubrication. It can operate continuously for more than three months by adding enough oil (8-10kg) at one time.
- Less functional loss: Due to improved lubrication conditions, rolling bearings are used at the gear end, which has a small resistance. Compared with the same type of cutting machine, the power can be reduced by one-third under the same load.
- Easy to move: flexible and easy to maintain.
Buy Steel Bar Cutting Machine
At present, more of our customers will choose to use the integrated steel bar straightening and cutting machine. Steel bar straightening and cutting machines are commonly used in construction sites and steel bar processing. The steel bar straightening and cutting machine can quickly straighten steel bars and cut them according to the set length. While steel bar cutting machines and steel bar straightening machines have a limited scope of application for engineering projects, straightening and cutting machines are more convenient to use and work more efficiently. In addition, our machines have been sold to multiple countries, Philippines, Malaysia, Thailand, Vietnam, the United States, Russia, etc., and received great feedback. If you also have needs, please feel free to contact us.
